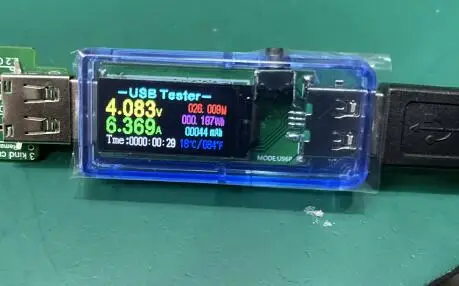

U96 used to be suitable for 5.1A current. It has been upgraded to U96P to test high current 6.5A. The silk screen of the product will be changed to U96P. This is a technical update, and the product test function remains unchanged.

13 IN 1 USB Tester Tips:

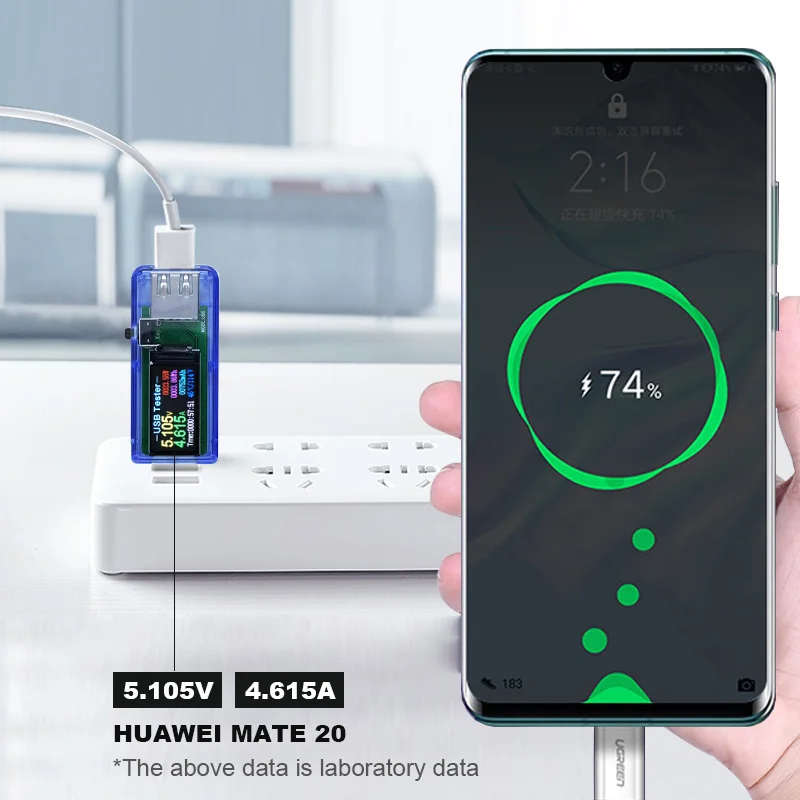

1) The upgraded version of the U96 model now supports 180W power with a maximum voltage of 32V and a maximum current of 6.5A. The upgraded USB port is OPPO’s 5P high-current port, but some Huawei chargers are 4P ports. If you find contact If it is not good enough, the current is low or no power is supplied. At this time, please try to pull out a short section for better contact and compatibility;

2) In addition, the button operation logic is optimized this time: Click the button to switch the interface cyclically; quickly double-click to clear the capacity, three-click to clear the battery, four-click to clear the time, and long press the button to clear all accumulated data ; Long press on the AAA interface is the screen flip; when you see the model is U96, please follow this instruction to operate the keys, thank you(2020.12.20)

Function characteristics:

1) 8192 pixels HD display;
2) D+ D- Voltage Tester
3) Memory power time data such as power;
4) The single monitoring shows charging voltage, current, power, power WH,mAH, charging time and other information;
5) USB is the copper pin and a low resistance in sampling technology, access after almost does not affect the charging speed;
6) Wide voltage from 3.60 V to 32.5 V;
7) Low and lower power since the < 0.003 A （ <3mA）
3.60V~32.5V / 0.00A~5.10A / 0 ~ 299.999W / 0 ~ 999999 WH / 0 ~ 999999 mAH / 0℃~+80℃ / 0~999 ohm / 999H 59M 59S / D+ D- Voltage 0.000V ~ 2.999 V / Since the power flow: < 0.003 A
8. When the power is > 0.5W, the time will be calculated!

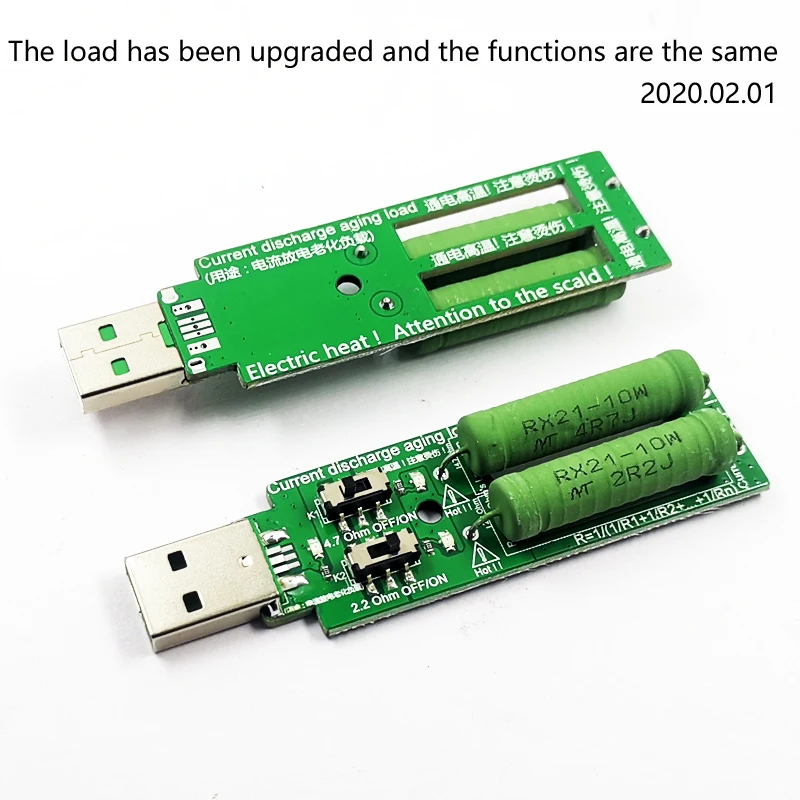

USB LOAD 1A/2A/3A description

A designed according to the principle of ohm's law and through the resistor in parallel through a different switch, can produce 3 kinds of resistance of a new USB electronic load resistance discharge, when all the switch opens, is 2.2 ohm/10W, 4.7 ohm/10W, 2 kinds of resistance in parallel at the same time, in 5V voltage almost can produce 3A discharge current.

The actual current size, please according to ohm's law: I = U/R

Resistor in parallel calculation formula: R=1/(1/R1+1/R2+...+1/Rn)

K1=4.7Ohm/10W , K2=2.2Ohm/10W

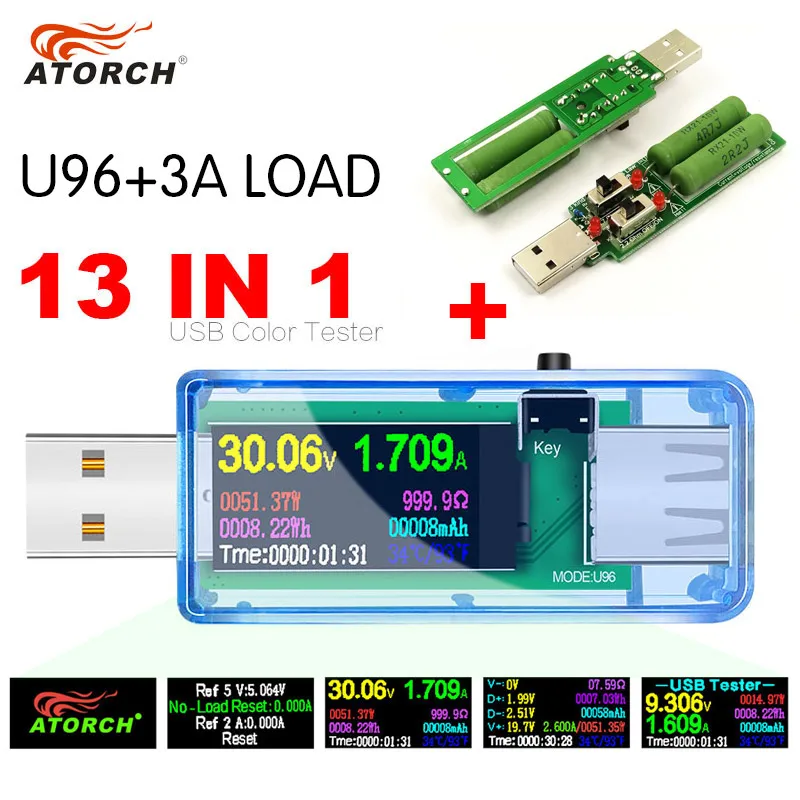

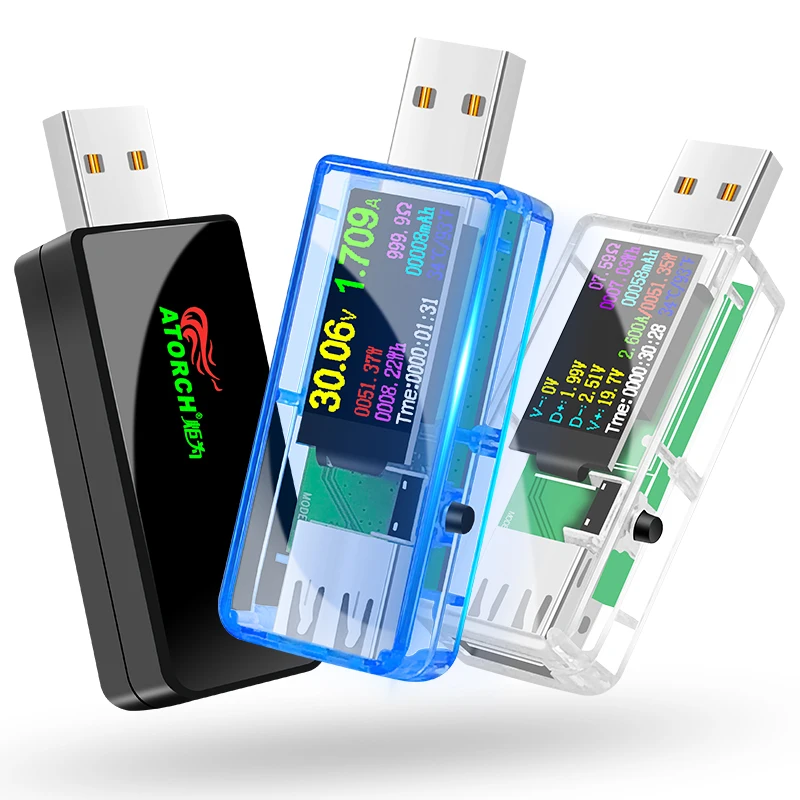

13 IN 1 Maximum charging current 6.5A Three colours

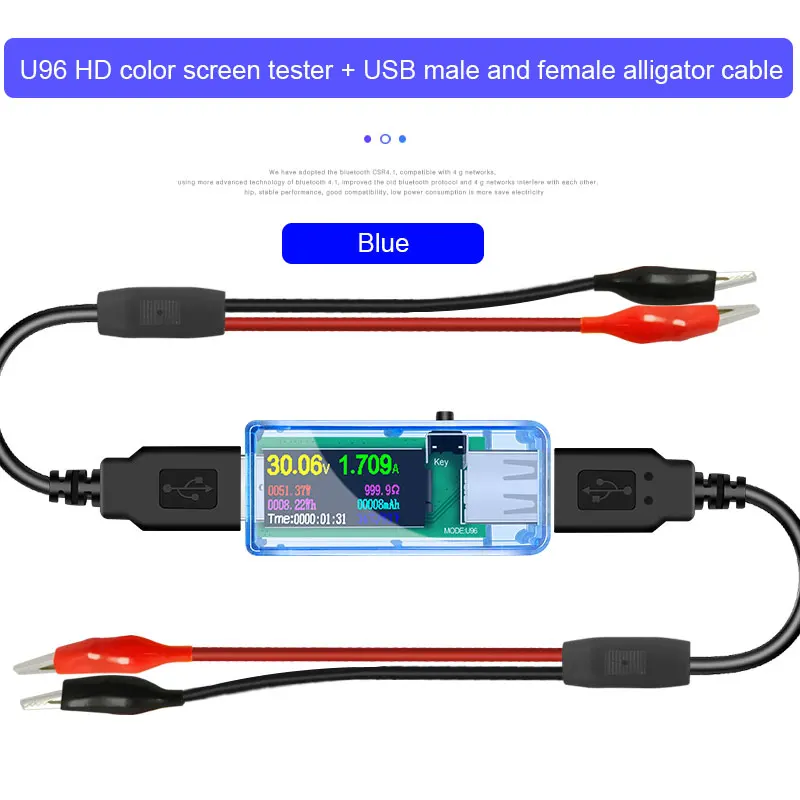

1. Blue shell

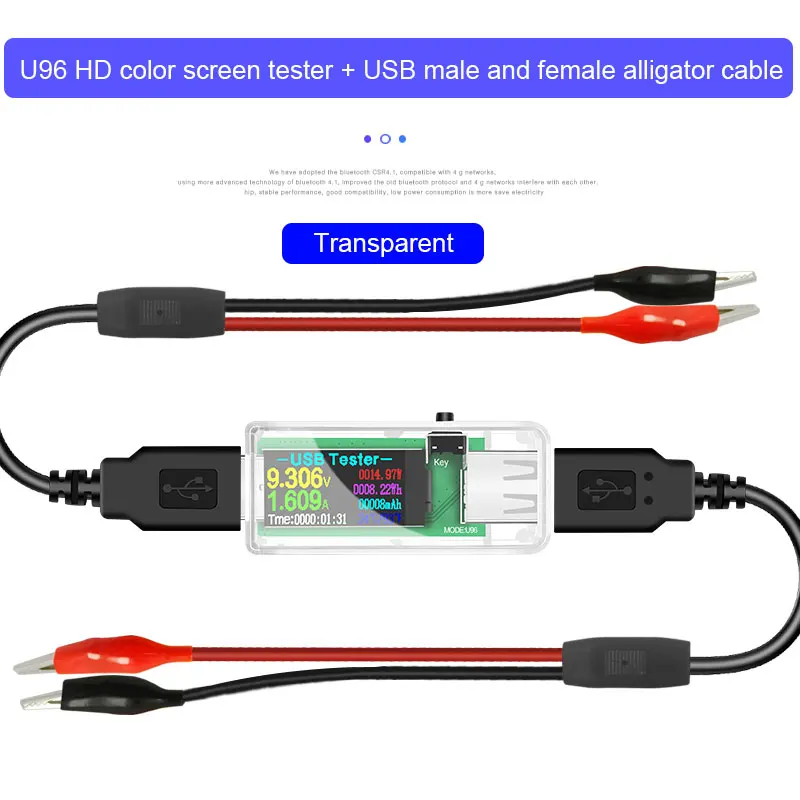

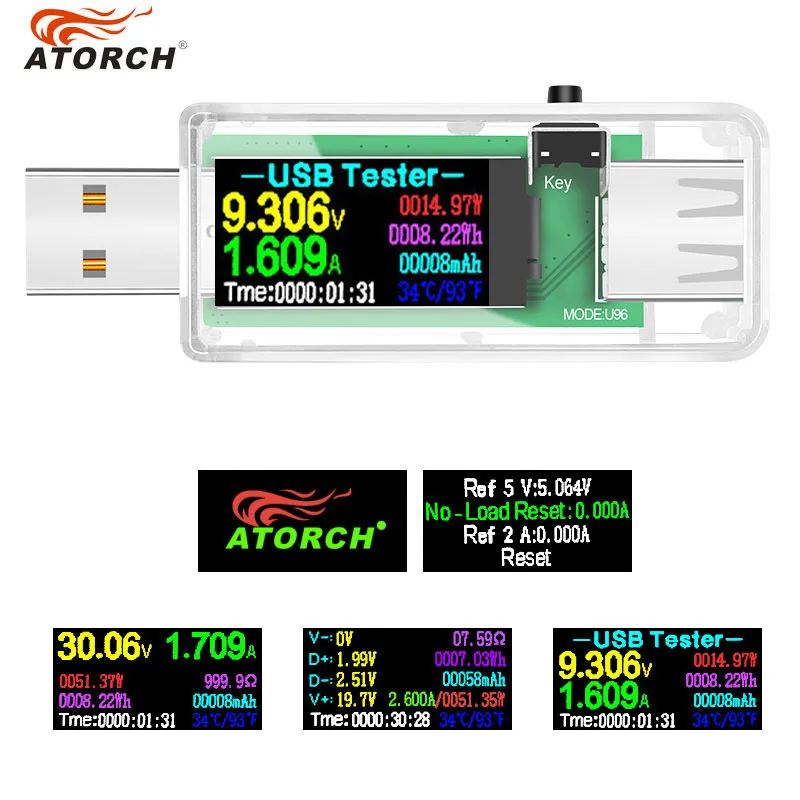

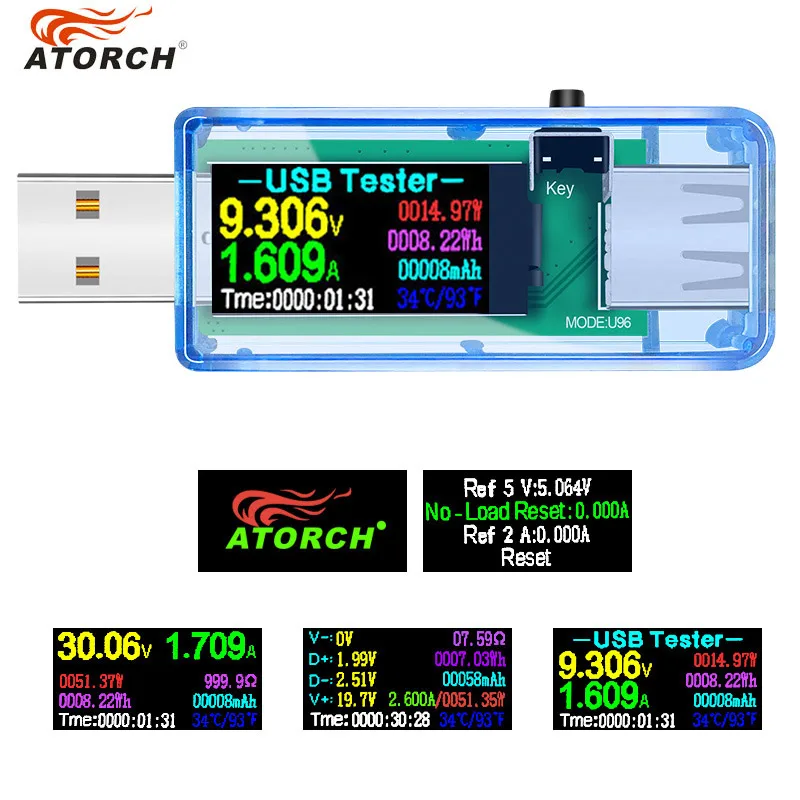

2. Transparent shell

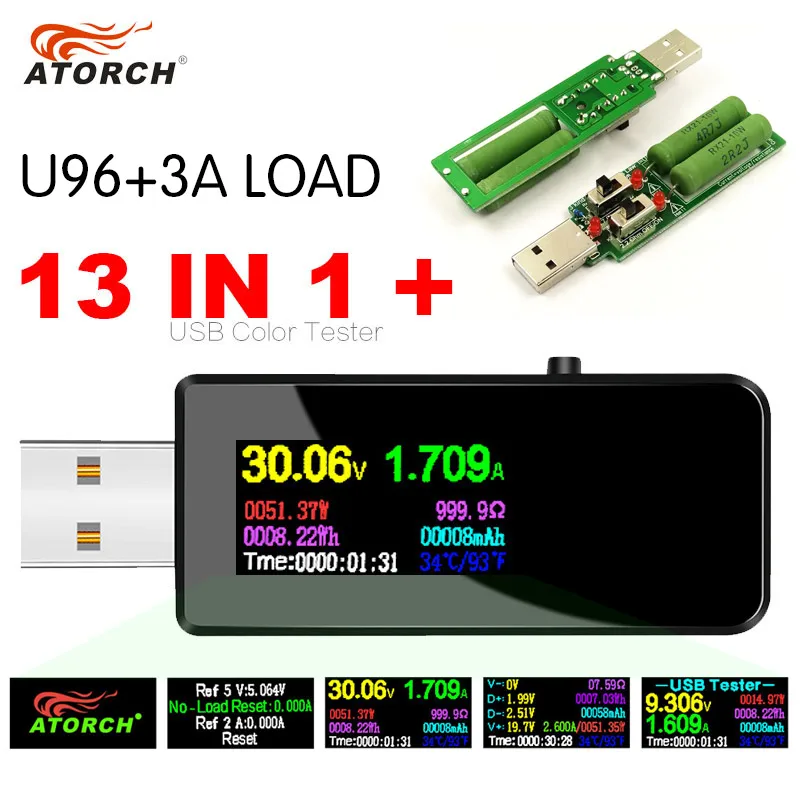

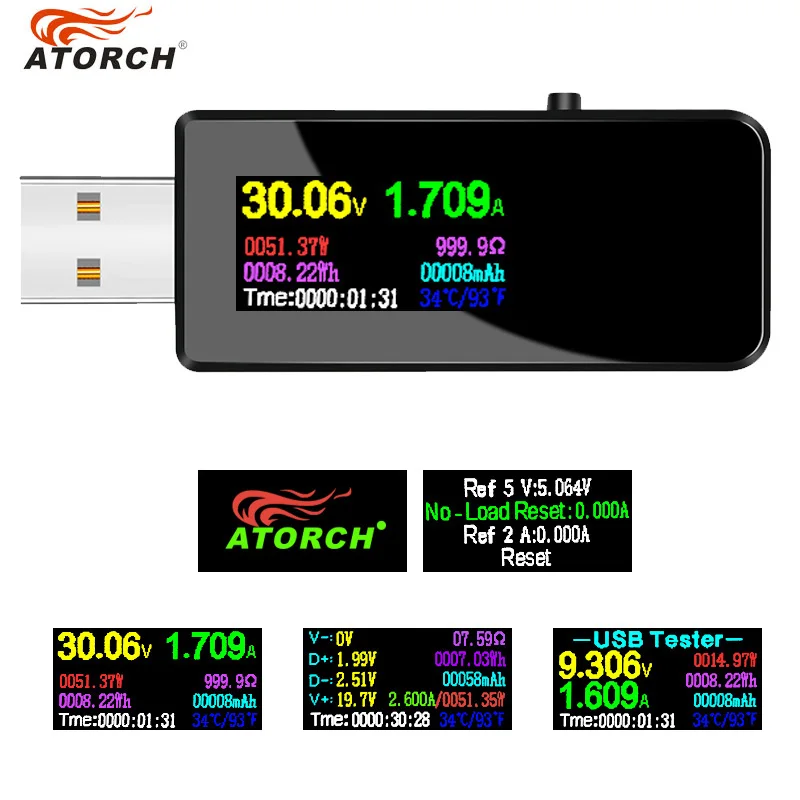

3. Black shell Choose what you like

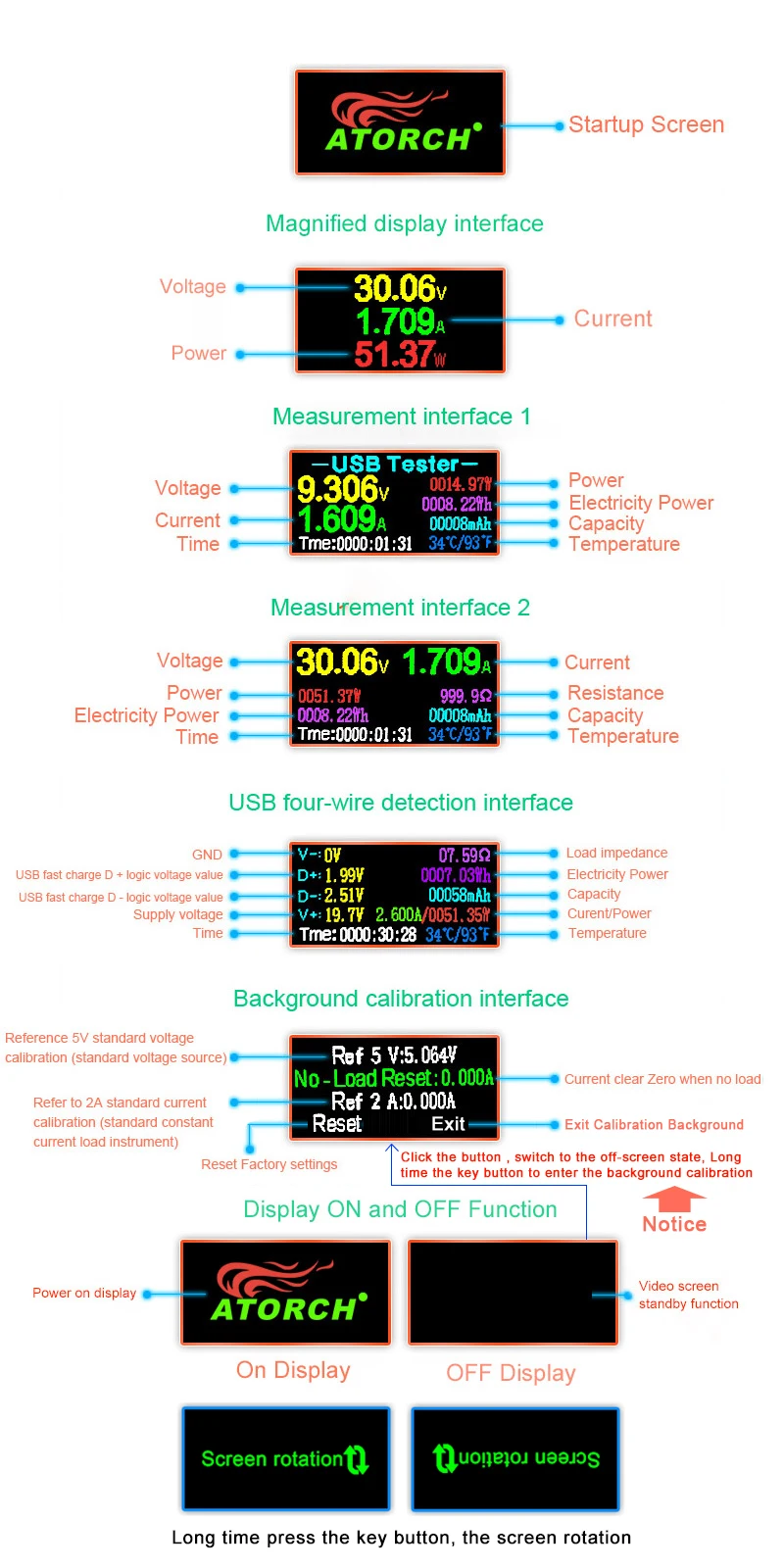

U96 key button operation instructions:

1. Short Press key button to switch screen
2. Long press key button the screen to flip
3. Quickly double-click key button the power Wh to clear zero
4. Fast three-click capacity mAH to clear zero
5. Fast four-click time to clear zero

13 IN 1 USB Tester Technical parameters:

Voltage measuring range: 3.60V ~ 32.5 V Resolution precision: 0.01 V
Current measuring range: 0.00A ~ 5.00 A Resolution precision: 0.01 A
Power cumulative range: 0 ~ 999999 WH Resolution precision: 0.001 Wh
Capacity range : 0 ~ 999999 mAH Resolution precision: 0.001 Ah
Temperature：0℃~ + 80 ℃ Resolution precision:1℃
D+ Voltage:0.000V ~ 2.999 VResolution precision: 0.001 V
D- Voltage:0.000V ~ 2.999 VResolution precision: 0.001 V
Load impedance: 0~ 999 ohm Resolution precision:1 ohm
Power metering range: 0 ~ 299.999 W Resolution precision: 0.001 W
Timing maximum time: 999 H 59 M 59 S Resolution precision: 1 S
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times/s
Use large equipment of the same metal manganese bronze sampling resistor
(1.0 mm diameter metal manganese bronze material < 0.05R)
Product size: 65 x 24 x 14 mm
Since the power flow: < 0.003 A （<3mA）
Working temperature: - 10 ~ + 60 ℃
Working humidity: 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
Cumulative capacity range: 0-99999 mah precision: 0.001 Ah (New features or D+ D- Voltage )
Specifications:
Item size:65 * 24 * 14 mm
Net weight: 19g
Package weight: 28g

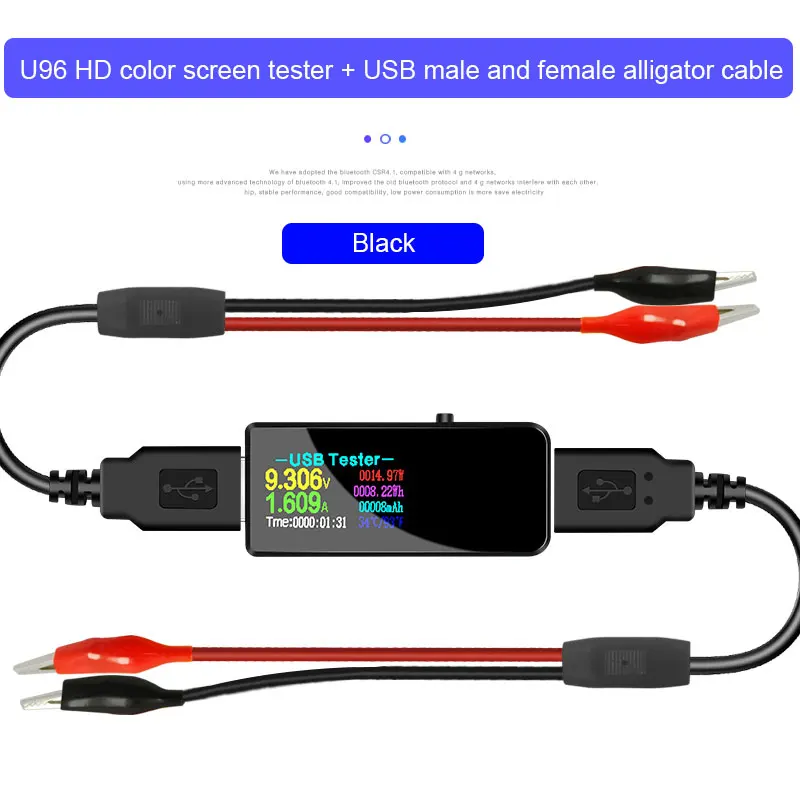

Colour: Black
Display Colour: white or black
Packing content:
1 x Digital USB Voltmeter Tester
