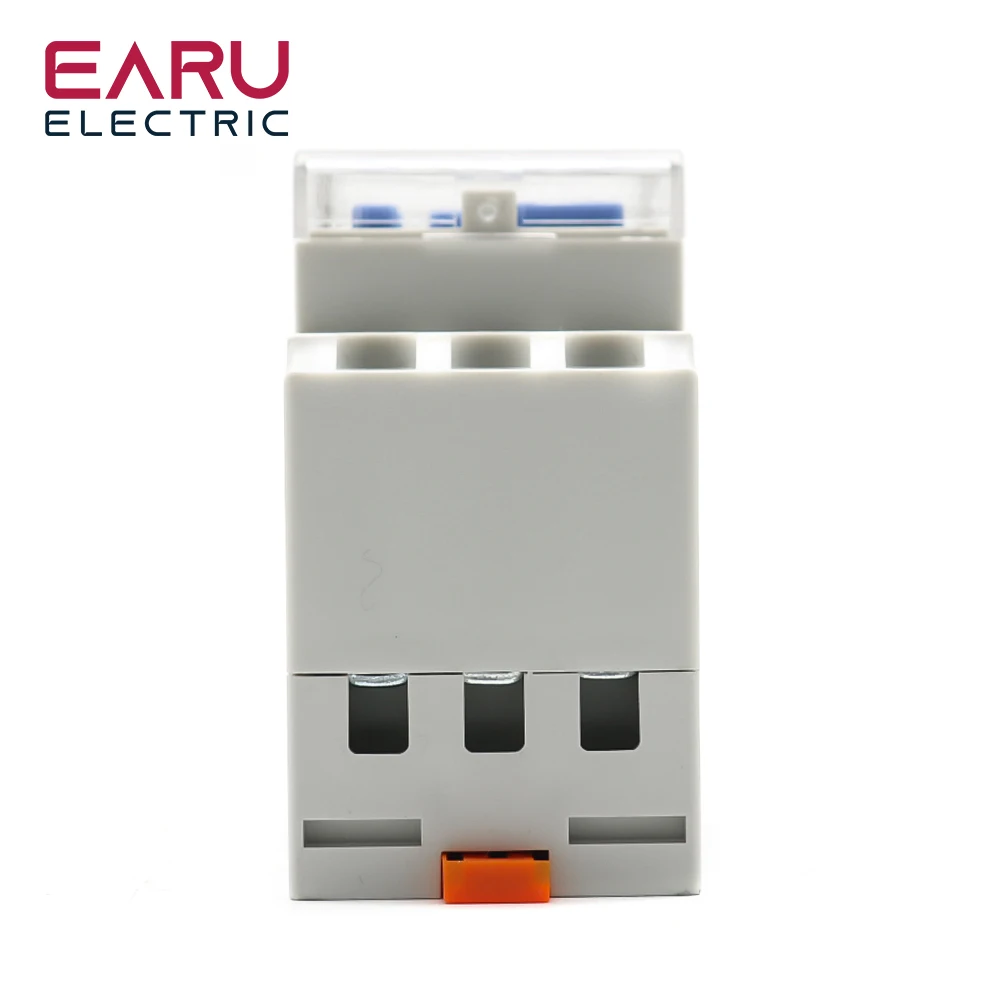

DIN RALL Installation

Advanced pre-setting one-week before

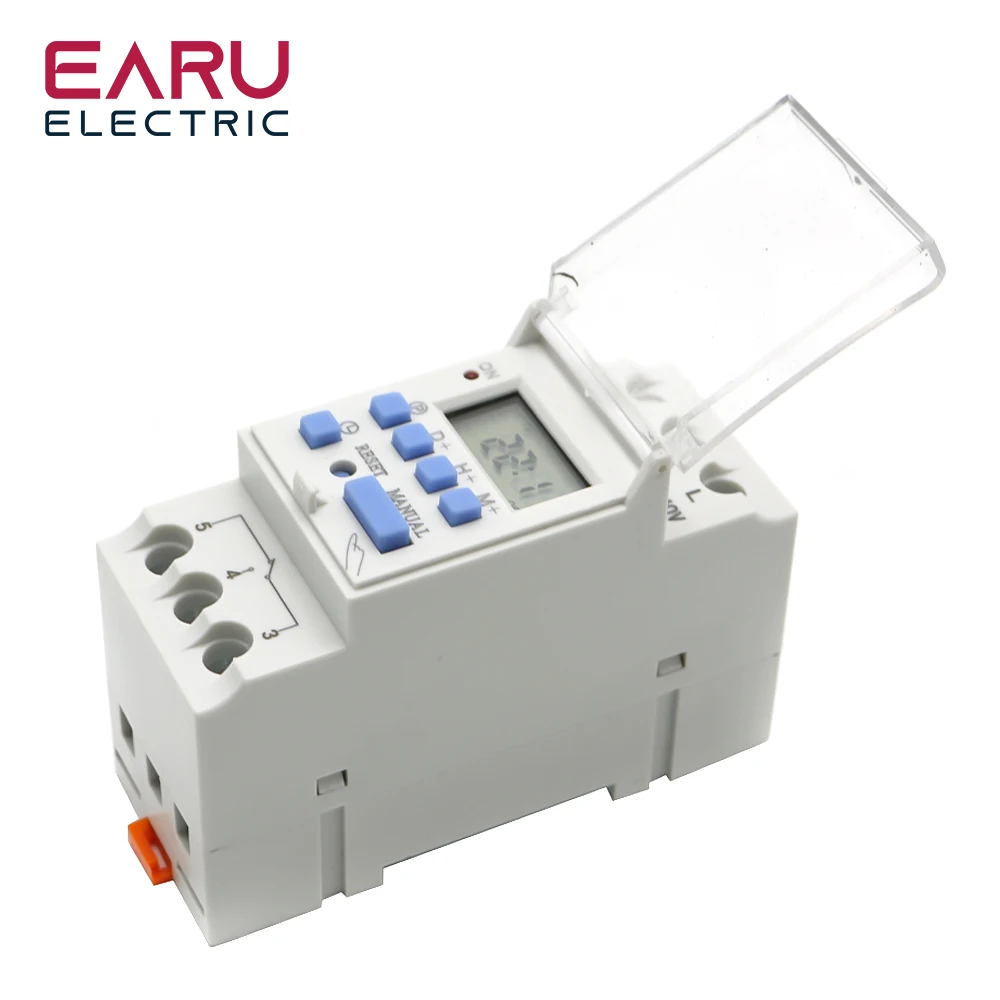

Digital electronics general purpose time switch with daily and programs

Repeat programs with 18 on/off settings and setting on/off manually.

Lithium battery power reserve when electric supply cut off.

Auto time error correction ±30 sec, weekly

DTECHNICALDATA

Hysteresis: ≤ 2 sec/day (25℃)

CON/OFF operation:18 0N &18 0FF

minimum interval:1 minute

weight: approx. 150g

Count down:1 sec-99min 59 sec

Pulse:1 secretary -59 min 59 sec

Switching contact:1 changeover switch

Power reserve:3 years (lithium battery)

Ambient temperature: -10 +40℃

Ambient humidity:35~85%RH
