DC 12V to 5V 6V 9V 3.3V 3.7V 4.2V 7.5V DC Step Down Converter 12 to 5 6 9 Volt Car Monitor Camera Power Buck Voltage Regulator
DC 12V to 5V 6V 9V 3.3V 3.7V 4.2V 7.5V DC Step Down Converter 12 to 5 6 9 Volt Car Monitor Camera Power Buck Voltage Regulator
Couldn't load pickup availability
SPECIFICATIONS
Weight: 45g/pc Type: DC/DC Converters Product Function: 12 Volt to 5 6 9 Volt Converter Application: 12V to 5V 6V 9V DC Step Down Converter Model Number: 12V to 5V 6V 9V DC Converter Output Type: single Output Current: 3A Max Model Number: F23J*V3A** Certification: CE FCC RoHS Brand Name: fulree.
DC 12V to 5V 6V 9V 3.3V 3.7V 4.2V 7.5V DC Step Down Converter 12 to 5 6 9 Volt Car Monitor Camera Power Buck Voltage Regulator
|
Product Name |
DC DC Converter 12V to 3.3V 3.7V 4.2V 5V 6V 7.5V 9V 3A |
|
Brand Name |
Fulree |
|
Model No. |
F23J**V3A**(First ** for output voltage Second ** for case No) |
|
Module Properties |
non-isolated buck module |
|
Rectification |
synchronous rectification |
|
Input (cable length: 13-14cm) |
|
|
Input Voltage |
DC 12V |
|
Input Voltage Range |
DC 8-23V (3.3V-5V out) / 9-23V (6V out) / 10-23V(7.5V out) / 11-23V (9V out) |
|
Output(cable length: 13-14cm) |
|
|
Output Voltage |
DC 3.3V / 3.7V / 4.2V / 5V / 6V / 7.5V / 9V |
|
Output Current |
3A Max |
|
Output Power |
9.9W / 11.1W / 12.6W / 15W / 18W / 18W / 18W Max |
|
Conversion Efficiency |
>93% |
|
Voltage Regulation |
±3% |
|
Load regulation |
± 2% |
|
Ripple (Full load test) |
< 150mV |
|
No-load current |
<100mA |
|
Working Temperature |
-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
|
Waterproof Rating |
IP68 |
|
Protection |
Over-current protection / Overheating protection / Short circuit protection / Input reverse polarity protection / anti-shock protection |
|
Application |
mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on. |
|
Case Material |
ABS Plastic-1S / Aluminum-1L / ABS Plastic-4S Case |
|

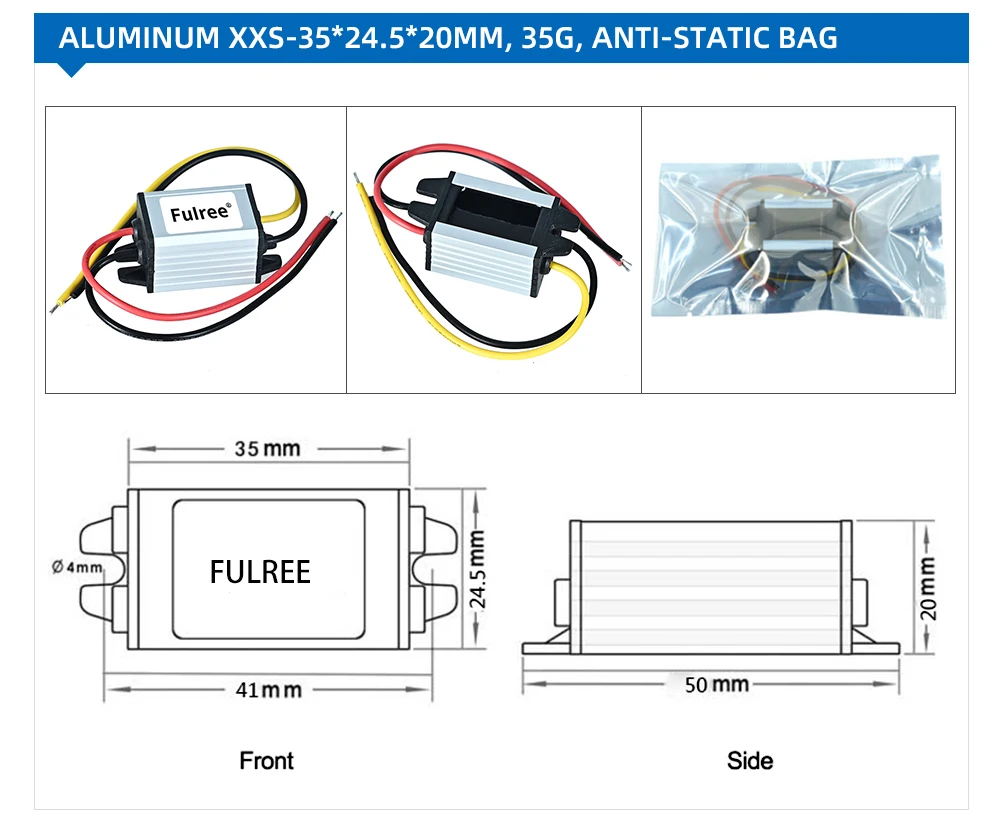

Product Size (L x W x H) |
46*27*14mm / 35*24.5*20mm / 37*26*22mm |
|
Product Weight |
35-45g/pc |
|
Warranty |
12 months |
|
Cooling Way |
Free air convection |
|
OEM&ODM Service |
Acceptable |
