5 pcs Metal Push Button Switch 12v 16mm 19mm 22mm Ring Lamp Power Symbol Waterproof LED Light Self lock reset with connector 220 - Free Shipping
5 pcs Metal Push Button Switch 12v 16mm 19mm 22mm Ring Lamp Power Symbol Waterproof LED Light Self lock reset with connector 220 - Free Shipping
Couldn't load pickup availability

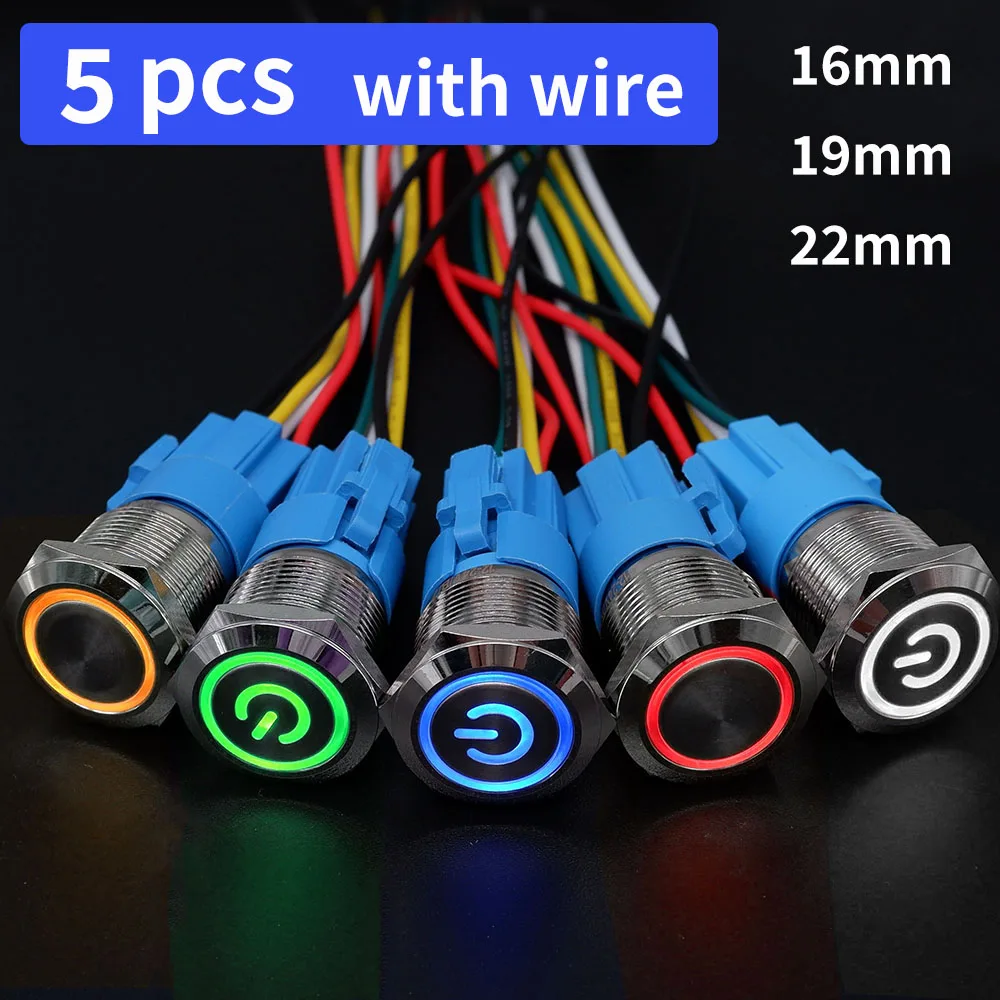

Including: 5 pcs switches + 5 pcs connectors

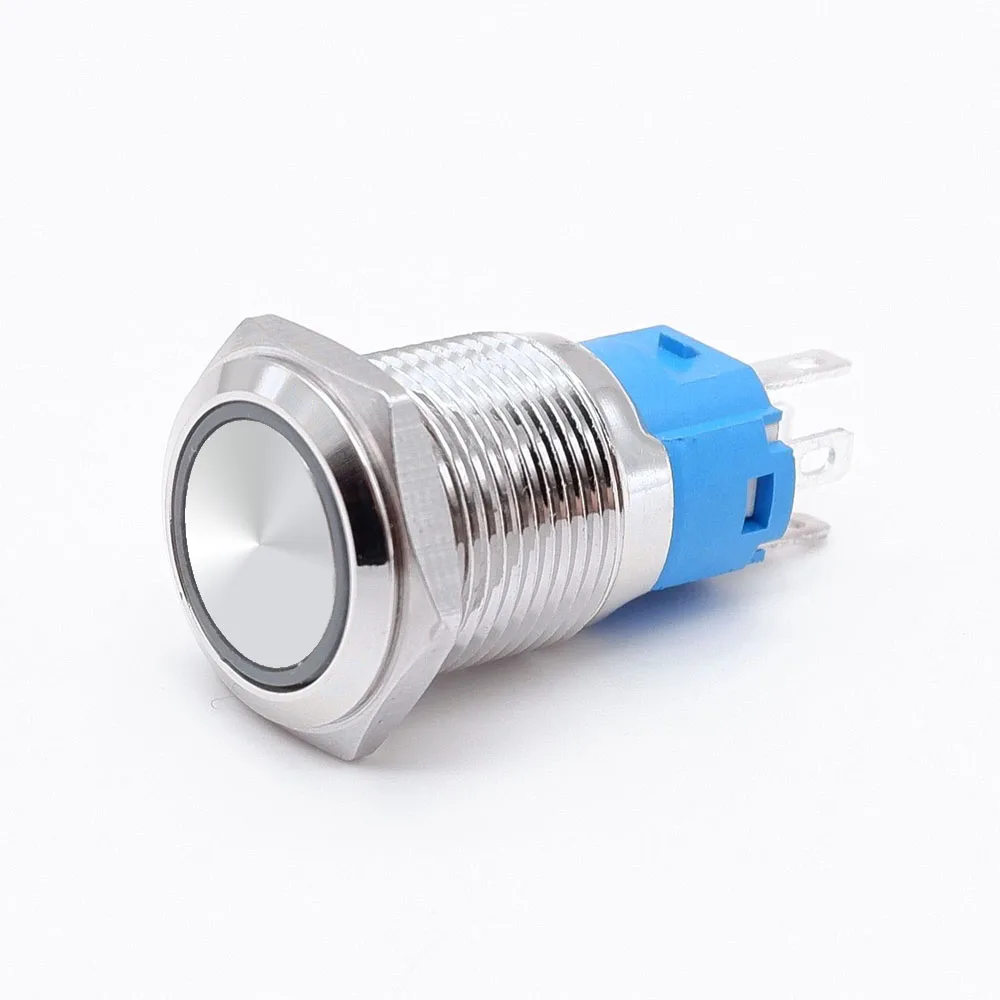

Product Name: Push Button Switch
Shell colour: Silver
Switch Combination: 1NO1NC

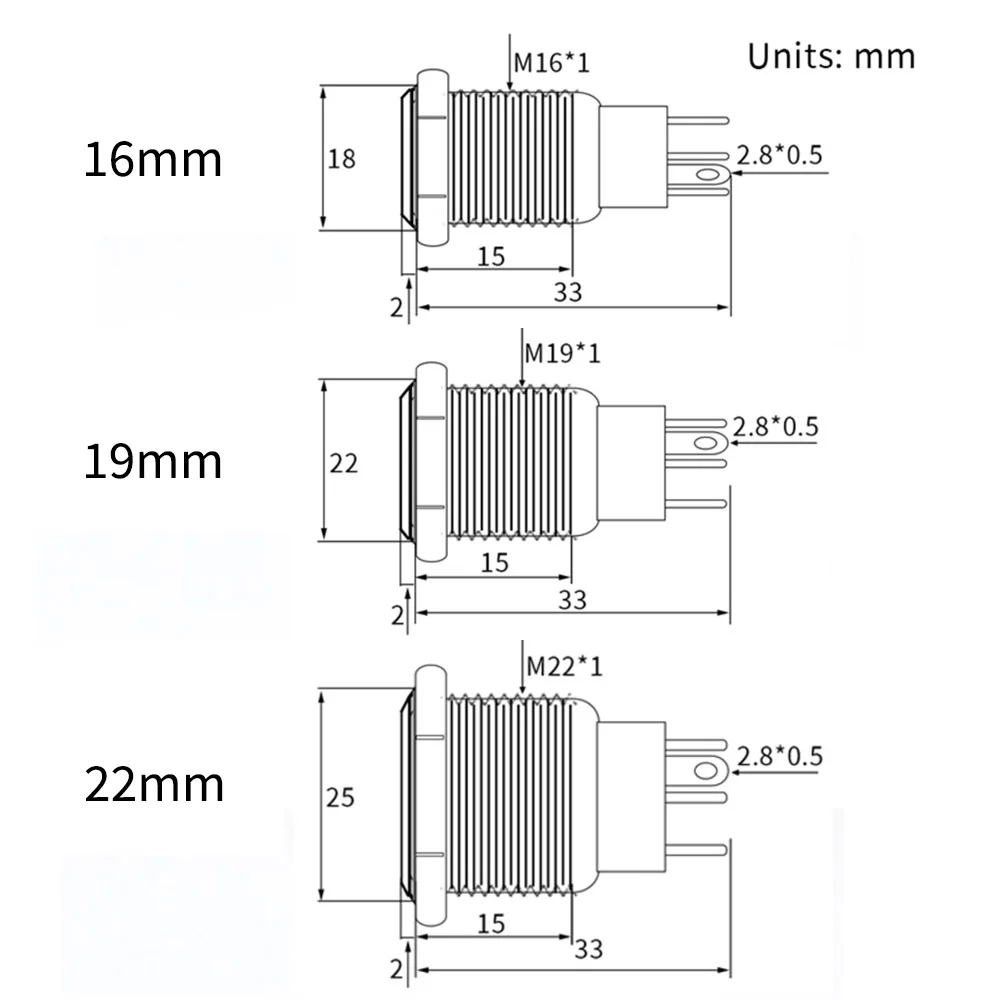

Opening Diameter:16mm/19mm/22mm
Max Current: 3A
Operation Type: Self-recovery 、Self-locking
Material: Brass nickel plating
LED Colours: Red, Yellow, Blue, White, Green
LED Voltage: 3-6V;9-24V
Waterproof Level: IP65
Switch Tip

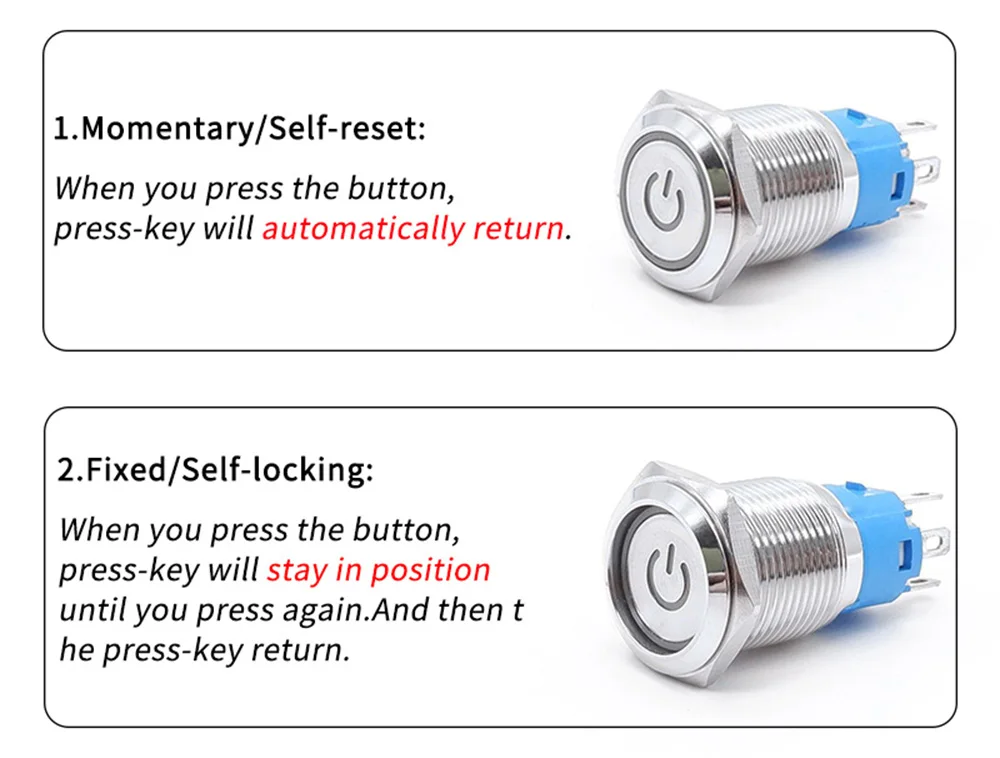

1.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch. Press it-power on, release it-power off.)
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again. And then the press-key return. (Like a light switch. Press it-power on, press it again-power off.)
Non-polarity LED lamp makes wiring more convenient. High brightness and long service life.
The metal shell can resist corrosion, pressure and wear.
With rubber sealing ring, waterproof and dustproof.
Flame retardant base, fire and electricity proof, safer use.

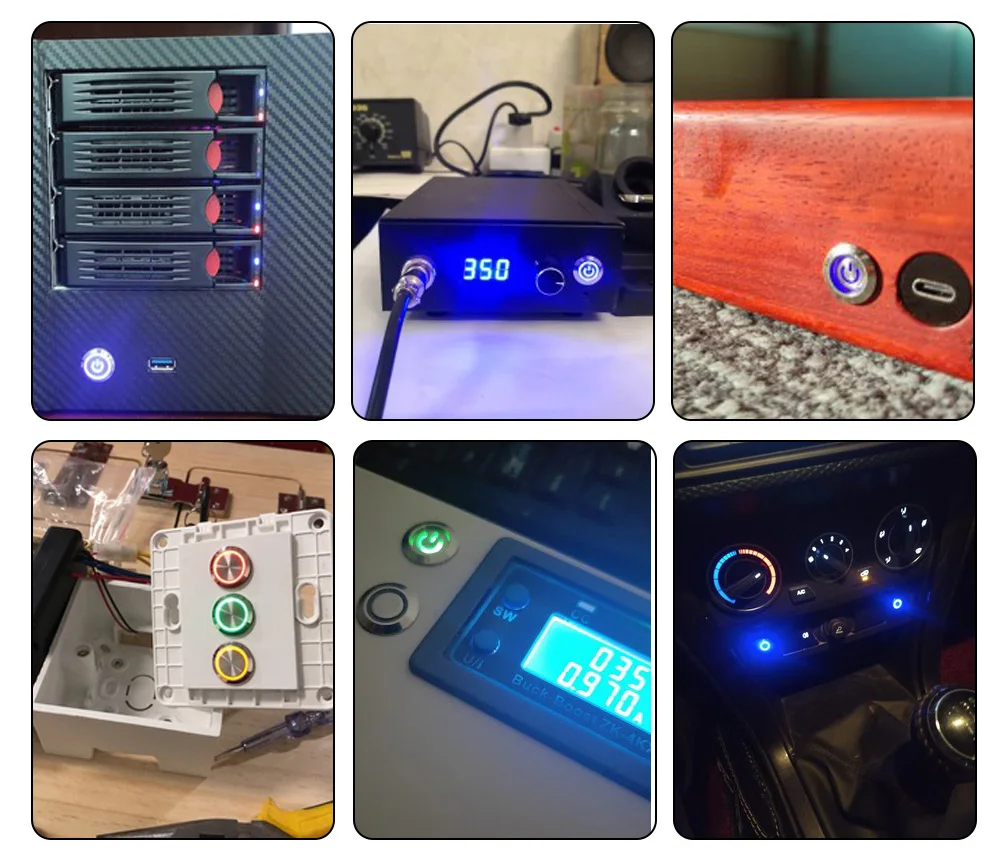

This metal push-button switch has many uses. For example, it is used in cars, computer mainframe, audio, socket, remote control and other places where you need switch control.
Wiring Instructions:
1.What does the signal “C”、"NC" and "NO" means?
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
2.How to connect?
(1).Connect " NO " and " C " : The circuit is always open unless press the button.
(2).Connect " NC " and " C " : The circuit is always close unless press the button.
3.Do lights and switches have electrodes?
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

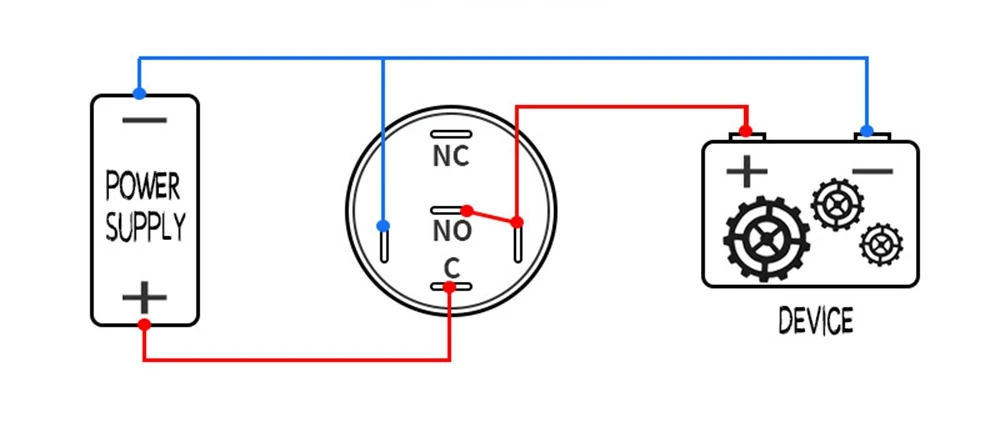

Wiring Diagram

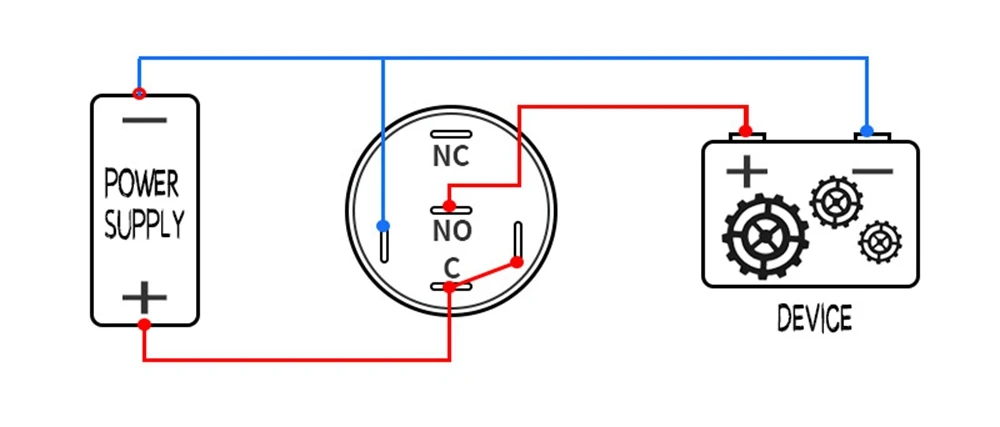

1、The button turns the LED light on and off，the circuit is alway open unless press the button.
2、LED lights are always on，the circuit is alway open unless press the button.

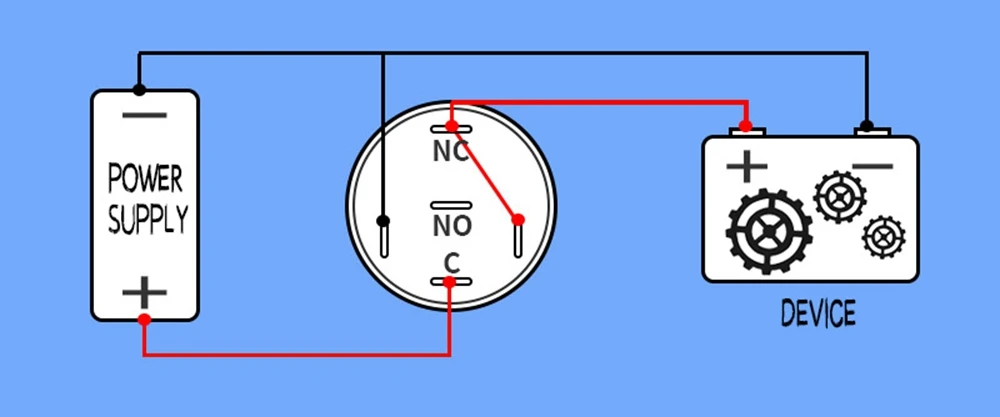

3、 The button turns the LED light on and off，the circuit is alway close unless press the button.
4、LED lights are always on，the circuit is alway close unless press the button.
