12 Way Car Marine Boat 12V 24V Fuse Box Blade Base Fuse Block Holder Screw Nut Terminal Free Fuses LED Indicator Waterpoof Cover

12 Way Car Marine Boat 12V 24V Fuse Box Blade Base Fuse Block Holder Screw Nut Terminal Free Fuses LED Indicator Waterpoof Cover

Regular price $21.01 AUD
Regular price $0.00 AUD Sale price $21.01 AUD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Voltage (Max): 32V DC
Input Terminal Rating: #10-32 threaded studs (100A max.)
Output Terminal Rating: 25A max. per circuit
Input Wire Size: #4-6 AWG
Output Wire Size: #12-16 AWG

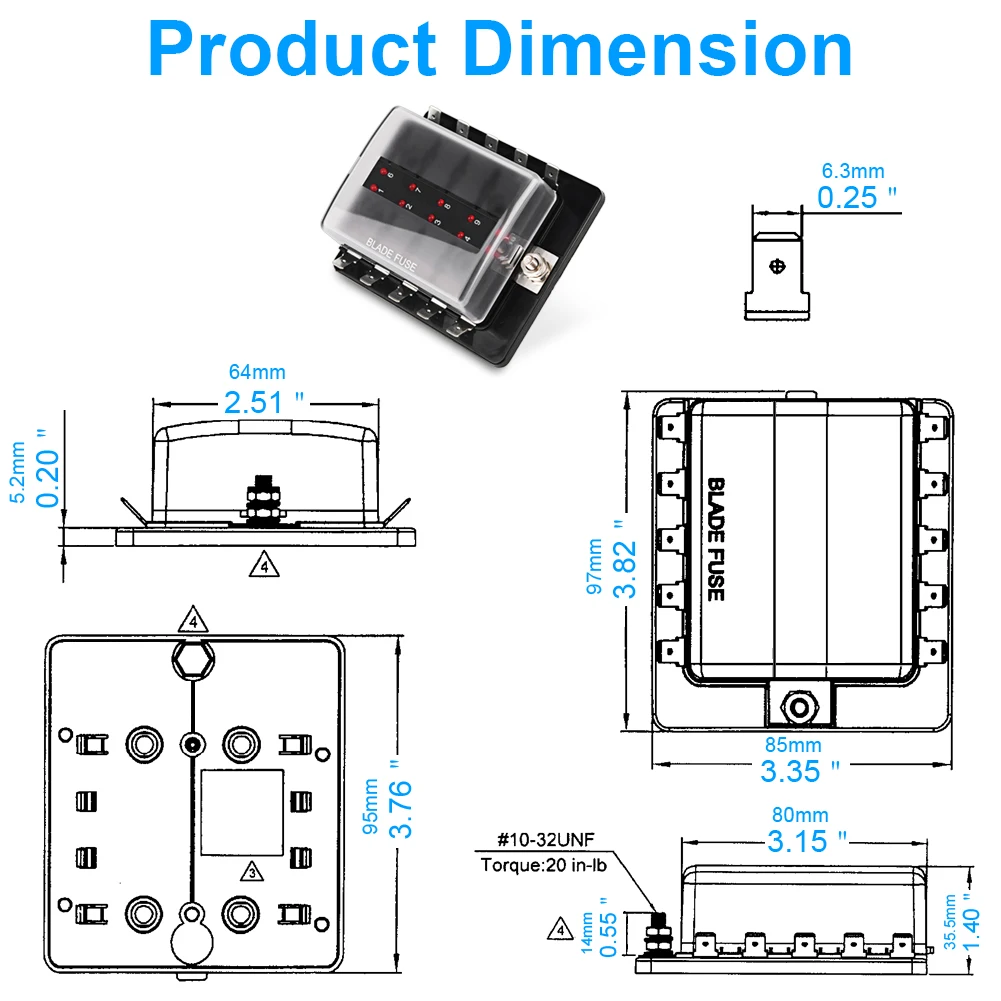

Blade Fuse Dim Dimensions: 4.55"x3.6"x1.77"(11.5*9.2*4.5cm)
Temperature Rating: -20 to 85 degrees
Materials: PC Cover(Transparents)+ PBT Base(Black) + POM Push Botton(White) + Tin-plating Copper

Features:

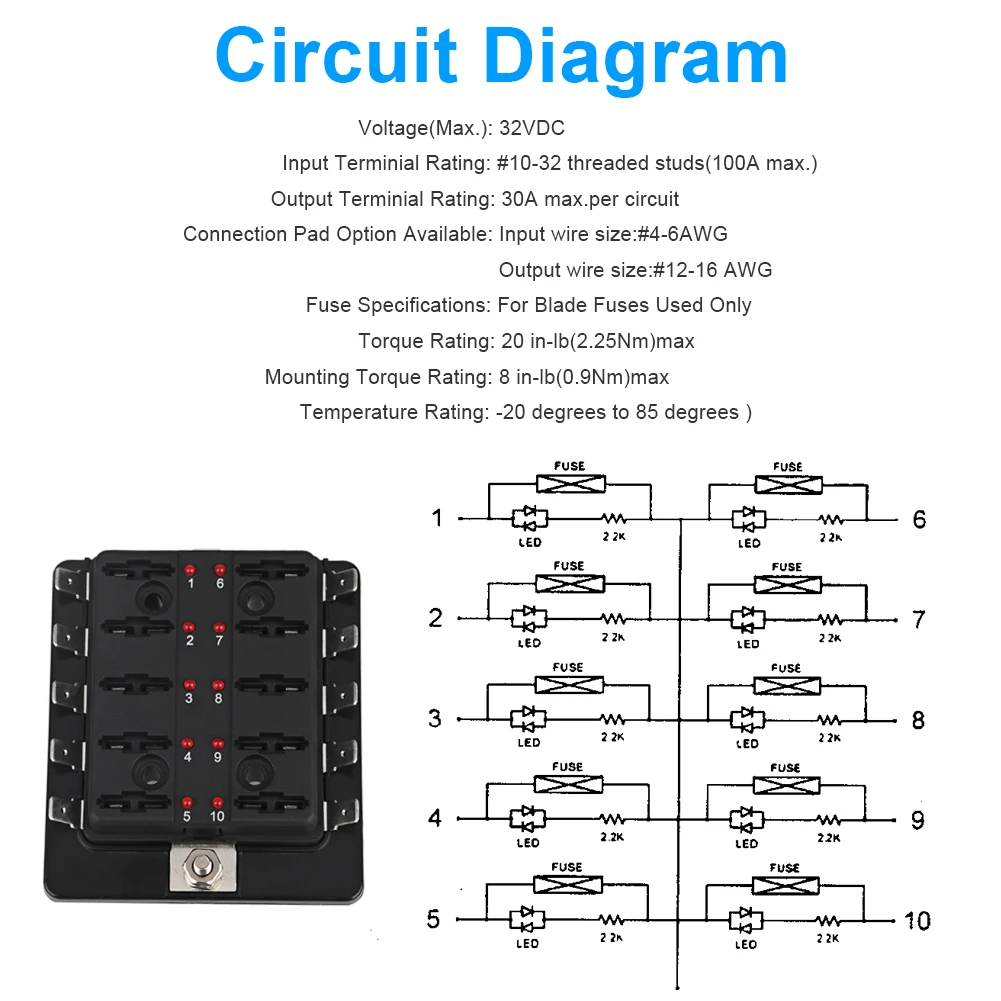

This is the only 12way blade fuse block that didn't come with Installation Notes,but We show the wiring diagram in the product picture
Come with a set of labels;With multi-function stickers for DIY your specific need
Maximum of 25 Amp per circuit and 100 Amp per panel
The fuse will cut off the current auto when it rise in the current to a certain temperature, so as to protect the safe operation of the circuit
Transparent cover for dust & humid protection
Rugged, light weight construction
Can be fixed through 4 pre moulded holes on side
Each fuse holder is numbered to make fuse installation and identification as easy as possible
The fuses will distinguish the strength of current by different color.Different colors represent different currents.(for example:5A,7.5A,10A,15A,20A etc) When ready to use ,just need to insert the fuses into corresponding fuses holder box
Widely used in Autos, Buses, Subways, Airplanes, Tankers,Car,Boat,Marine,Car,Truck,Vehicle,SUVS,Yacht,RV,Ships etc
It is a perfect kit for adding a few circuits to your auto, boat, off-road or others if all you need is something simple. Made of tin-plated copper common sourced bus, good productivity and corrosion-resistant, it is the absolute best!

Package Included:
1pcs x 12-Way Blade Fuse Block

12 Ways:

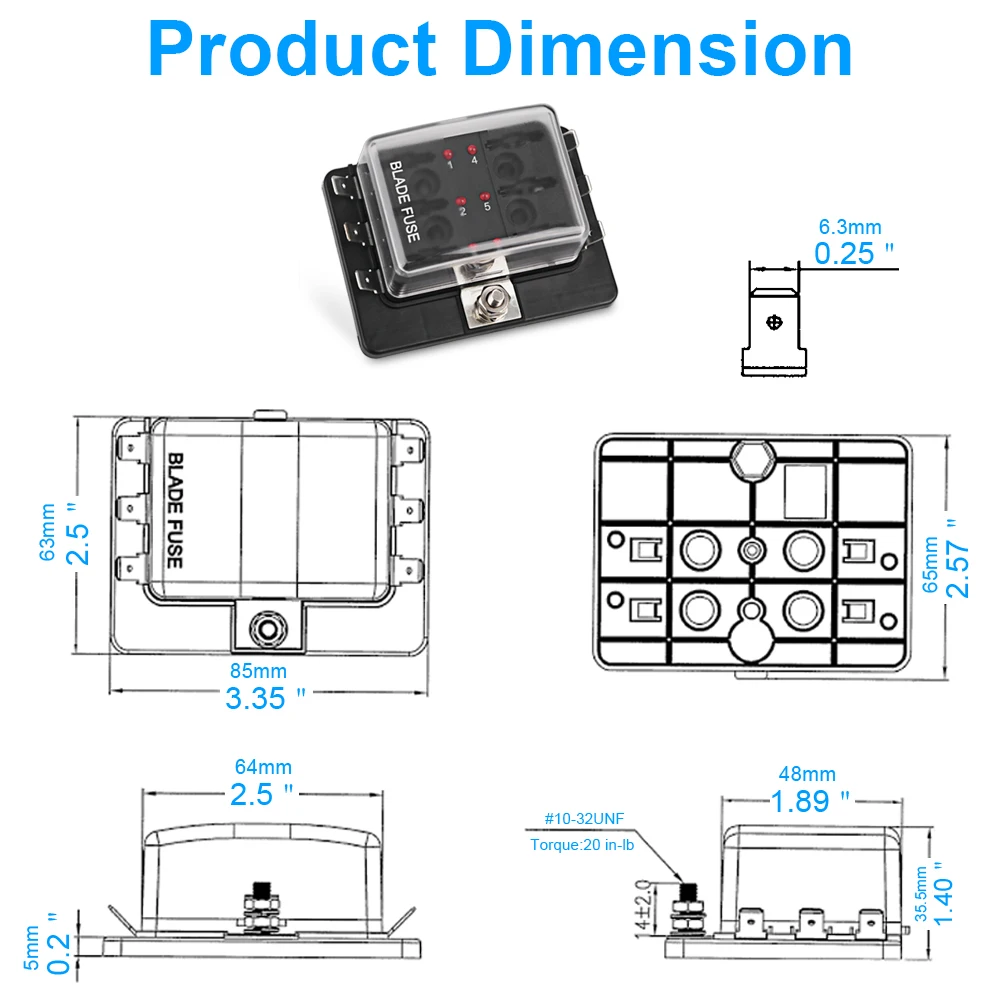

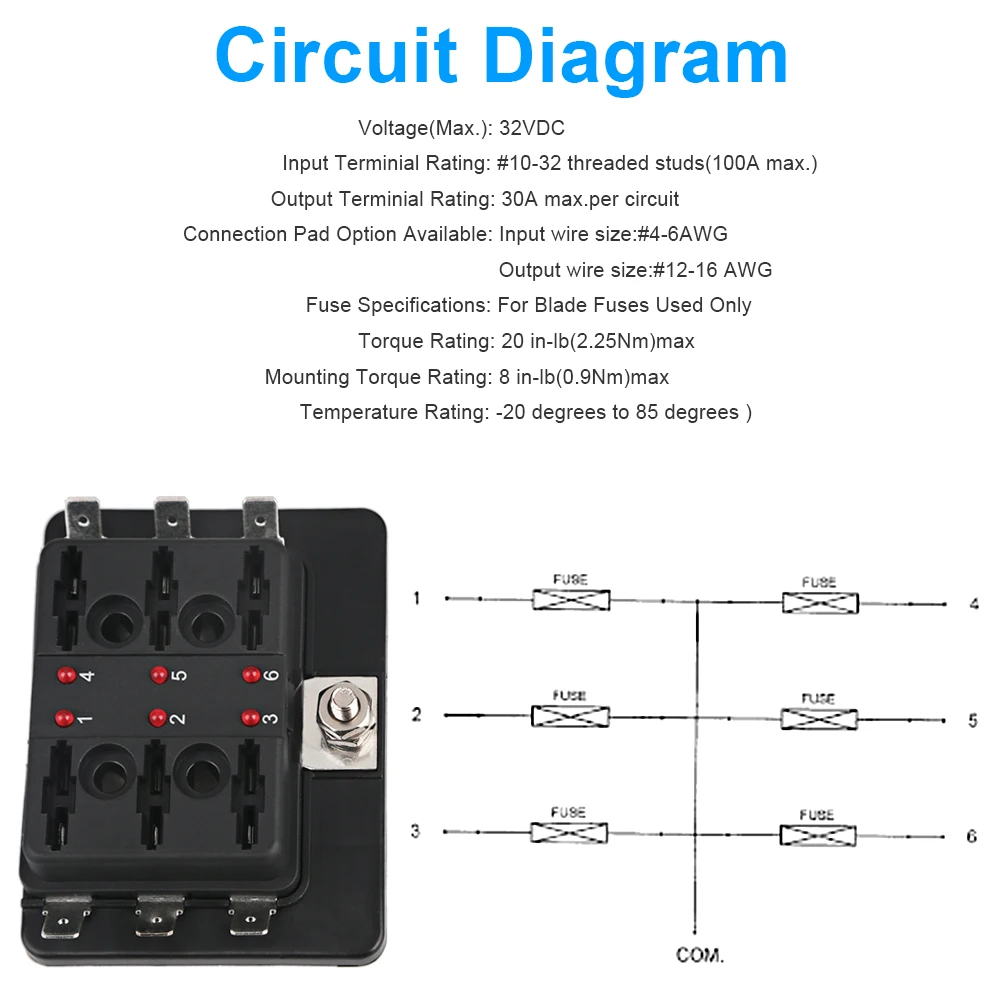

6 ways:

10 ways:
